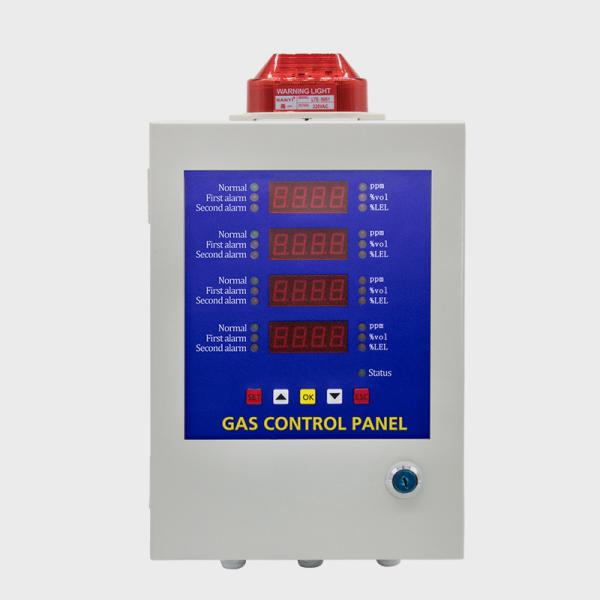

Fixed Gas Detector Controller With Anti - Jamming Software Technology

Brand Name : Bosean

Model Number : BH-50

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 60 -116 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 pieces per day

Delivery Time : 1-2 days

Packaging Details : Carton box

Color : Blue or Black

Support Channels : 1-4 channels

Work Power : 220V±10%, 50Hz

Gas : Combustible and toxic gas

Working Voltage : 15~30VDC

Output signal : 4-20mA/RS485

Working Temperature : -10℃-50℃

Size : 38*21*8cm

Contact Now

Fixed Gas Detector Monitor System Gas Detector Control Panel Connect With Computer Multi Toxic Gas Detector Controller

Description:

BH-50 is a single-point gas control panel. Each channel can connect with 1pc 4-20mA gas detector. With anti-jamming software technology, it is reliable and easy for maintenance.

Applications:

The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Features:

  • 4-20mA or RS485 output optional
  • EX certificate
  • 32-digit MCU control;
  • 4-20mA analog signal input to connect with 4-20mA detectors;
  • 4-2mA analog signal output to connect with DCS or other equipment;
  • 24 relay output with each can be set separately;
  • Optional power supply of AC220V;
  • Different quantity of channel can be combined together.

Fixed Gas Detector Controller With Anti - Jamming Software Technology

Specifications:

Product type BH-50 Gas controller
Channel Single channel,two channels,four channels
Power supply: AC220V±10% 50Hz
Consumption: ≤10W
Signal input: 4~20mA and RS485
Single output: two lines RS485(MODBUS)
Working temperature -10ºC~50ºC
Working humidity 0-95%RH (no dew)
Contact output Free contact output, max power 1kW
Installation method: Wall-mounted
Dimensions 380x210x80mm(L×W×H)

Supported Gases:

No. Detected Gas Detecting Scope Resolution Low/High Alarm Point Response Time Detection Accuracy
1 PH3 0-20ppm 0.1ppm 5ppm/10ppm ≤25s ±5%(F.S)
2 O2 0-30%vol 0.1%vol 19.5%vol/23.0%vol ≤15s ±5%(F.S)
3 EX 0-100%LEL 1%LEL 25%LEL/50%LEL ≤5s ±5%(F.S)
4 CO 0-1000ppm 1ppm 50ppm/100ppm ≤25s ±5%(F.S)
5 H2S 0-100ppm 1ppm 10ppm/20ppm ≤30s ±5%(F.S)
6 NO2 0-20ppm 0.1ppm 3ppm/10ppm ≤25s ±5%(F.S)
7 NO 0-250ppm 1ppm 25ppm/50ppm ≤60s ±5%(F.S)
8 SO2 0-20ppm 0.1ppm 5ppm/10ppm ≤30s ±5%(F.S)
9 CL2 0-20ppm 0.1ppm 1ppm/10ppm ≤30s ±5%(F.S)
10 NH3 0-100ppm 1ppm 25ppm/50ppm ≤50s ±5%(F.S)
11 H2 0-1000ppm 1ppm 50ppm/100ppm ≤60s ±5%(F.S)
12 HCN 0-10ppm 0.1ppm 1ppm/5ppm ≤200s ±5%(F.S)
13 HCL 0-10ppm 0.1ppm 1ppm/5ppm ≤60s ±5%(F.S)
14 CH4 0-100%LEL 1%LEL 25%LEL/50%LEL ≤5s ±5%(F.S)

Fixed Gas Detector Controller With Anti - Jamming Software Technology

FAQ

Q1:Are you factory or trade company?
A1:We are factory.

Q2:What about the payment method?
A2:T/T, Paypal, Western Union, L/C is available.

Q3:Does your company accept customization?
A3:We do customizing service for customers.

Q4:What about the Shipment?
A4:We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment by air expresssuch as DHL,FEDEX,TNT or UPS.

Q5:What about after-sale service?

A5:12 months warranty for all kinds of products;
